Description

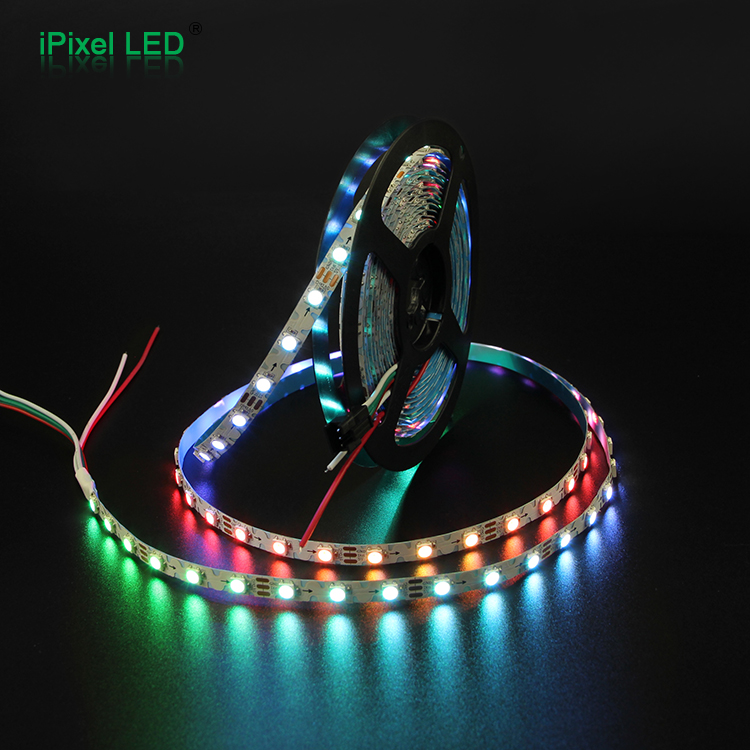

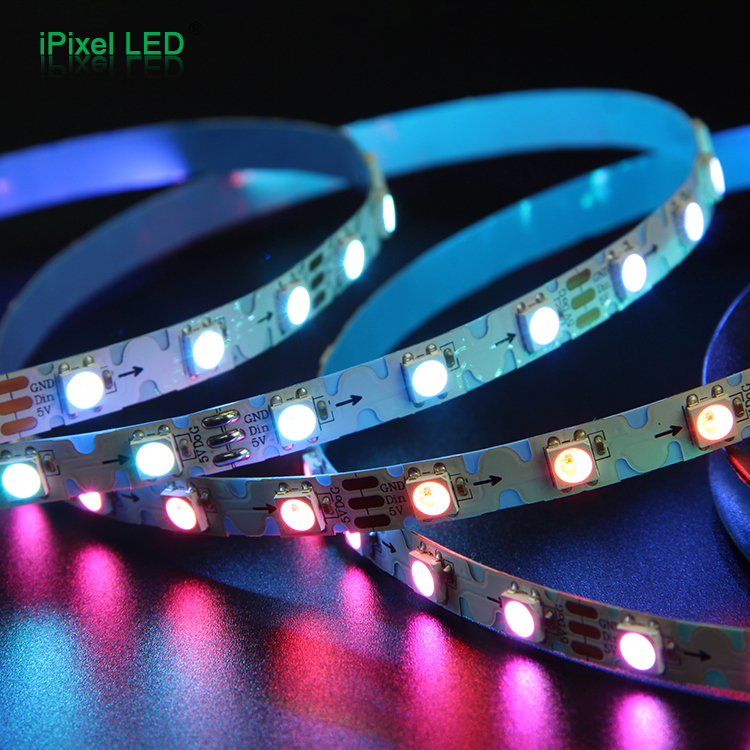

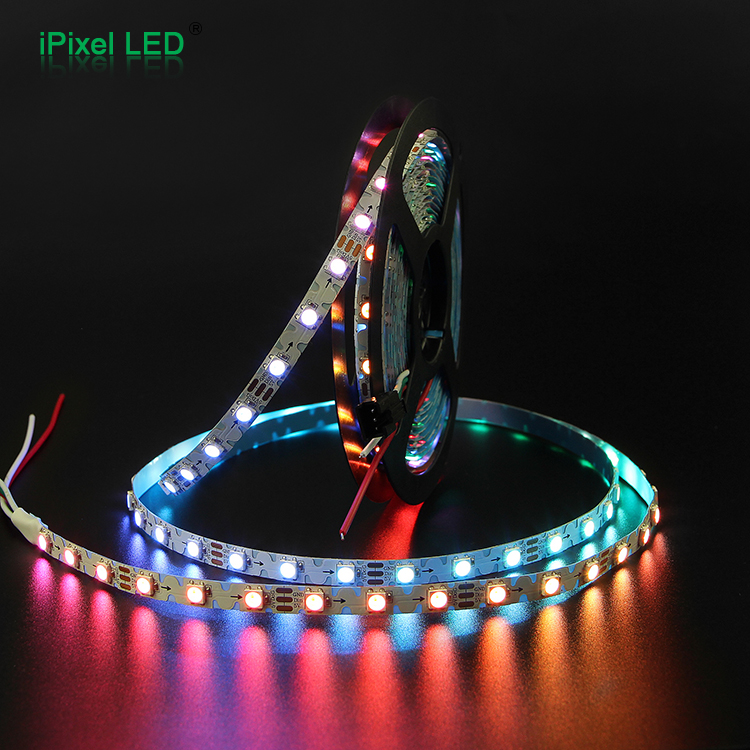

S shape(zigzag) addressable flex led strip
SMD5050 RGB/RGBW 60LEDs/m, 5m in a reel, and 3LEDs per section (Cut-able)
The IC is SK6812, with addressable individually control
The biggest advantage is the S shape, which can be bend at any Angle
Only available in IP20 non-waterproof version
|
PN |
S008060CA3SA1(S) |
S008060CA4SA1(S) |
|
Voltage |
DC5V |
DC5V |
|
Power |
12W/m |
14W/m |
|
LED Type |
SMD5050 RGB |
SMD 5050 RGBW |
| LED Quantity |
60LEDs/m |
60LEDs/m |
|
Cutting length |
50mm/3LED |
50mm/3LED |
|
Dimension |
5000*8mm |
5000*8mm |
|
Protocol |
SPI - SK6812 |
SPI - SK6812 |
| Pixel/M | 60 |
60 |
|
Materiral |
FPC |
FPC |
|
Luminance/m |
R:60Lm G:180Lm B:40Lm |
R:35Lm G:100Lm B:30Lm W:170Lm |
| O.T | -25℃ ~ 60℃ |
-25℃ ~ 60℃ |
Dimension (unit:mm)
IP Rate
