Home > Digital Strip > SPI >   4mm Width Tiny Addressable LED Strip DC5V

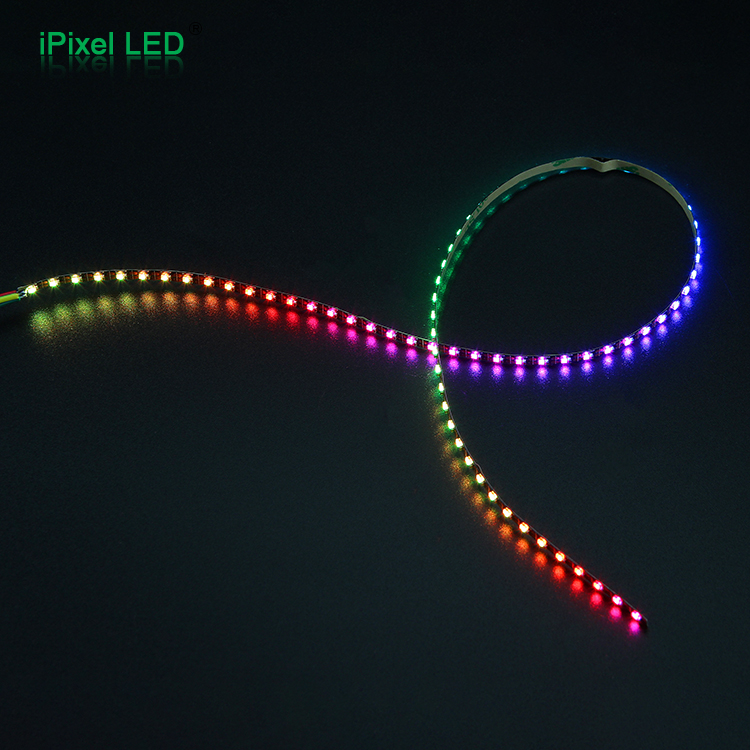

4mm Width Tiny Addressable LED Strip DC5V

Description

This is a Tiny Flexible LED strip ,only 4mm width ,RGB addressable

Micro LED chip 1.5*1.5mm only ,

each RGB LED built a mini driver inside, SPI Protocol ,256 level gray scale adjustable, signal in series

transmission each unit LED
can be cut down 5VCC Pad on bottom side, Data&GND
on front side,26AWG silicone wire,

The LED strip can be link to, it can be link to 1.5m long if powering from one side,

3M tape attached, non-waterproof IP20



Share to

Facebook Twitter g+

Specification

Product Parameter

    PN
    S004150UA3SDO
    Voltage
    DC5V
    LED Type
    SMD1515RGB
    LED Quantity     75LEDs/pcs(0.5m)
    Protocol
    SPI-SK6805
    Dimension
    500*4mm
    Emitting Color
    Full color
    PCB Color     Black
    Power
    6W/0.5m
    O.T     -25℃ ~ 60℃


Dimension (unit:mm)

IP Rate
