Double row 120leds/m SK6812 RGB side emitting addressable LED strip DC5V

Description

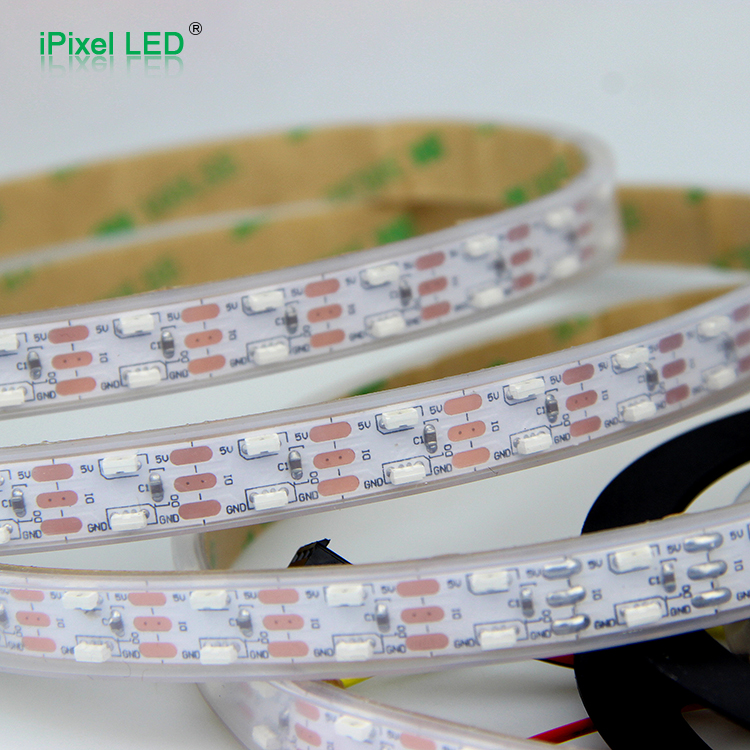

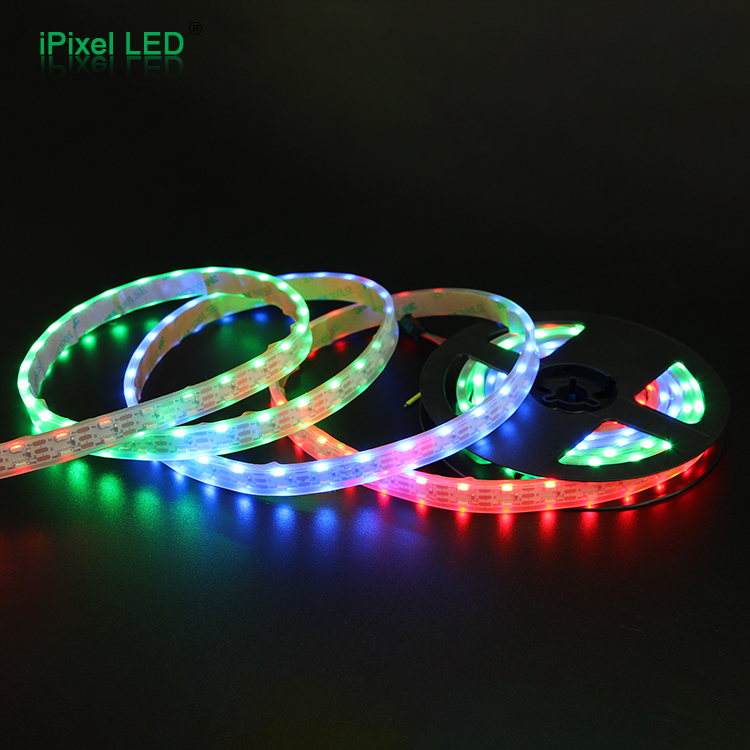

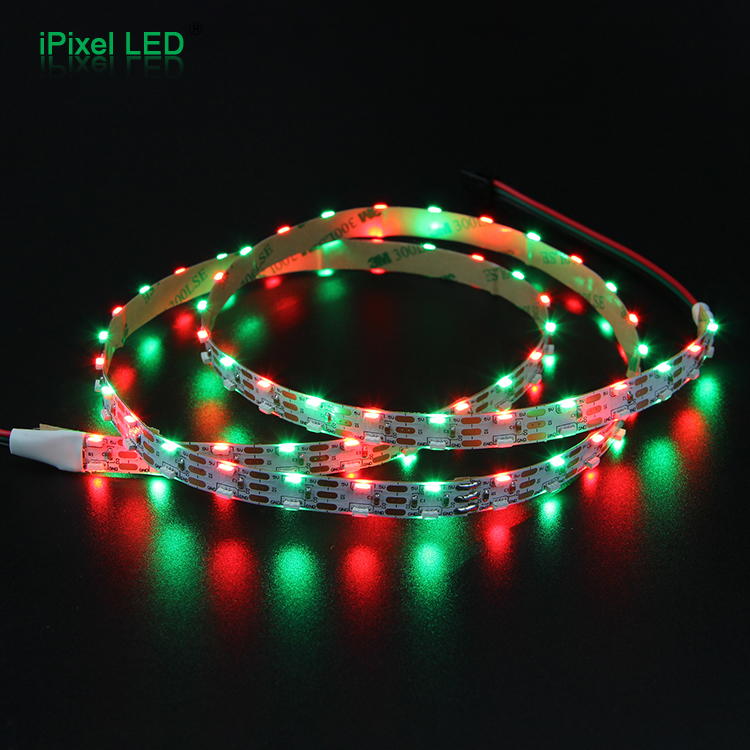

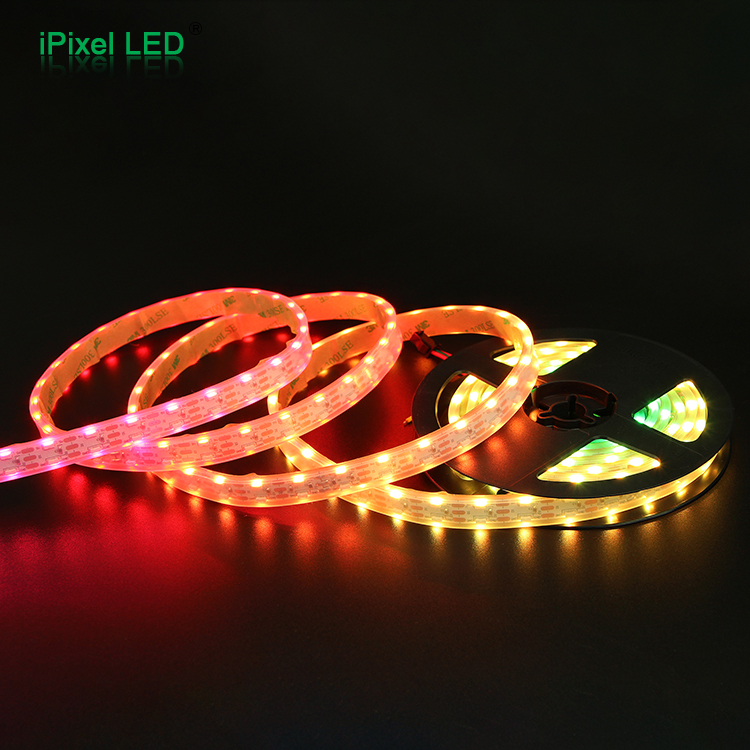

Side emitting addressable LED Strip with SMD4020 RGB LED chips.
This new SK6812 side emitting addressable LED strip comes out under the demand of edge lighting.
With limited size for installation of the strip 60Pixels/m. Every 16.67mm can be cut.
PCB Color: White only. DC5V voltage. SPI signal protocol. 5 Meters per reel. Customized sizes are also available.

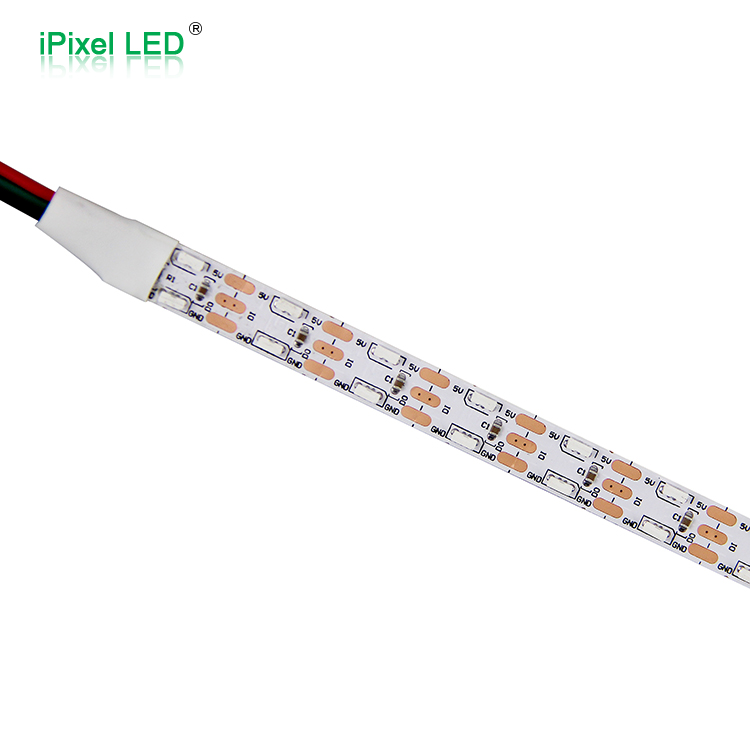

3Pin JST SM connector. IP65 waterproof with silicon tube housing.

The PCB is 1+2 Ounce copper, 10mm width.



Share to

Facebook Twitter g+

Specification

Product Parameter

    PN
    S010120IA3SA1
    Voltage
    DC5V
    LED Type
    SMD4020RGB
    LED Quantity     120LEDs/m
    Dimension
    5000*10mm
    Protocol
    SK6812
    PCB Color
    White/Black
    Power
    22W/m
    Lumens
    480lm/m
    O.T     -25℃ ~ 60℃

Dimension (unit:mm)

IP Rate
