Description

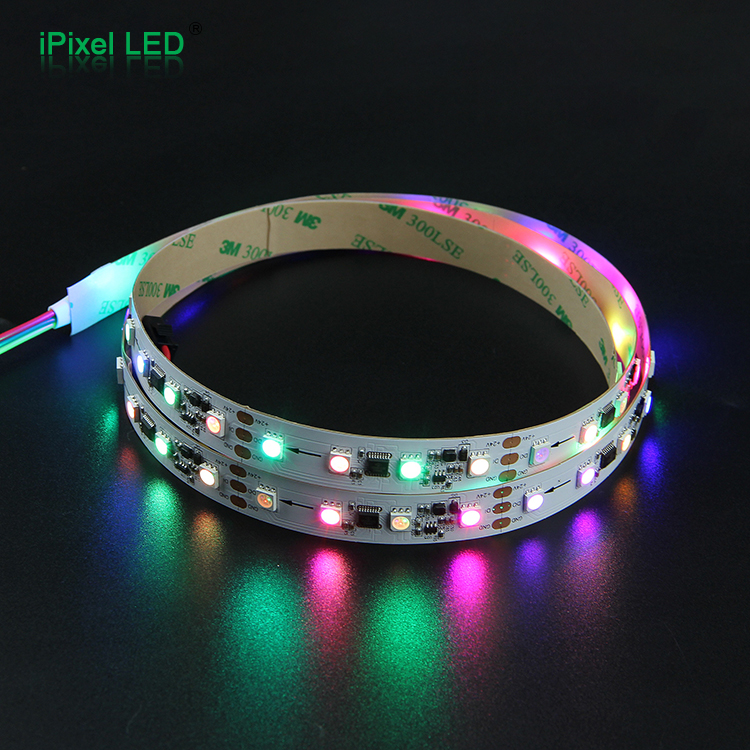

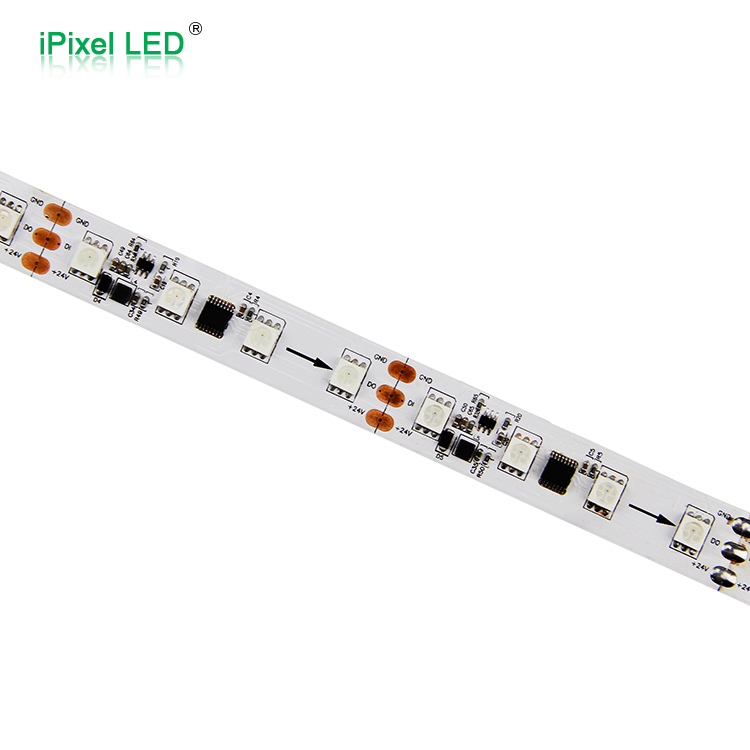

Addressable 24V 1LED & 1Pixel RGB LED strip with 60Pixels/m
SPI control, 4LEDs per section cut-able
The cutting unit is 66.6mm, White/Black PCB are available
3 Ounce thick cooper FPC, 5m per reel and 3M tape is included
JST SM Connector on each side, Constant voltage operation
Silicon tube housing waterproof IP65
LEDedit controller can not work with this IC chip
(K-1000,K-4000, K-8000,T-500K)
Recommended controller
http://www.jietw.com/index.php?id=229
http://www.jietw.com/index.php?id=231
if user use own controller ,make sure it support UCS9812 IC chip
PN |
S015060CC3SC2 |
Voltage |
DC24V |
LED Type |
SMD5050RGB |
Dimension |
5000*15mm |
Protocol |
SPI |
IP | IP20/IP65 |
Power |
14.4W/m |
Pixel/m |
60PCS |
O.T | -25℃ ~ 60℃ |
Dimension (unit:mm)
IP Rate
