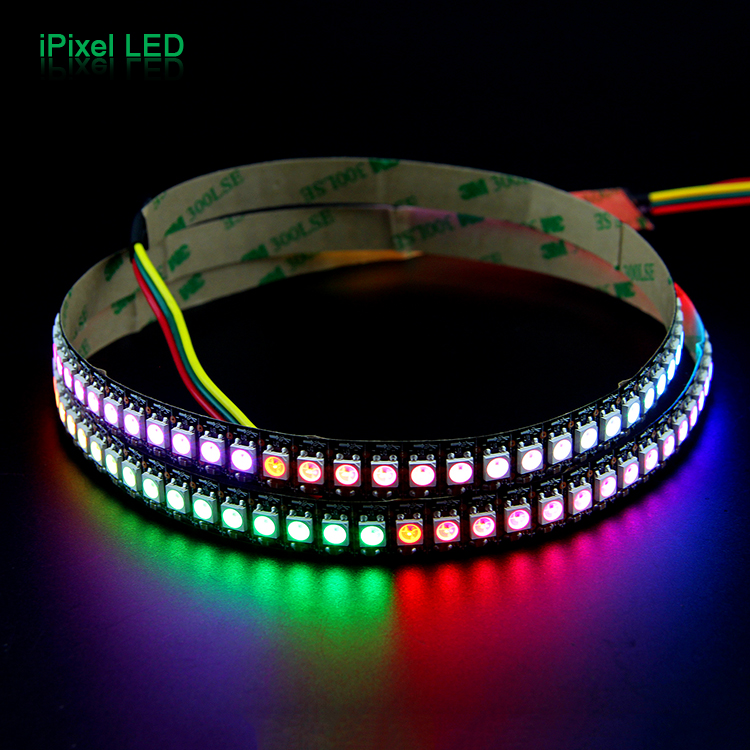

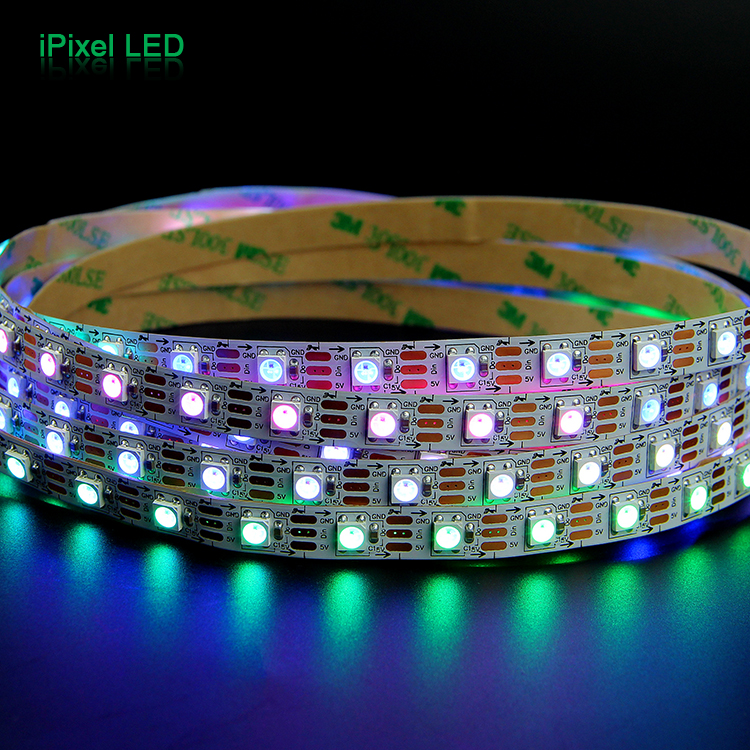

SK6812 RGB Addressable LED strip 30/60/144LEDs/M DC5V

Description

30/60/74/144 individually-controllable LED pixels on a flexible PCB,

It's completely out of control and ready for you to blink,

And an extra heavy flex PCB in white & Black version,
The digitally-addressable type of LED strip. You can set the color of each LED's red, green and blue component

with 8-bit PWM precision (so 24-bit color per pixel),

The LEDs are controlled by shift-registers that are chained up and down the strip so you can shorten or lengthen

the strip, Only 1 digital out pin is required to send data. The PWM is built into each LED-chip so once you set the

color you can stop talking to the strip and it will continue to PWM all the LEDs for you,

Regarding it's flexible PCB material, you can cut this stuff pretty easily with wire cutters, there are cut-lines every

LED. Solder to the 0.1" copper pads,

You can also connect strips together to make them longer, just watch how much current you need.



Share to

Facebook Twitter g+

Specification

Product Parameter

   PN
    S010030CA3SA1
    S010060CA3SA1
    S012144CA3SA1
   Voltage
    DC5V
    DC5V
    DC5V
   LED Type
    SMD 5050 RGB
    SMD 5050 RGB
    SMD 5050 RGB
   LED Quantity     30LEDs/m
    60LEDs/m
    144LEDs/m
   Protocol
    SPI - SK6812
    SPI - SK6812
    SPI - SK6812
   Dimension
    5000*10mm
    5000*10mm
    1000*12mm
   Pixel/m
    30PCS
    60PCS
    144PCS
   PCB Color     White/Black     White/Black
    White/Black
   Power
    6W/m
    12W/m
    24W/m
   O.T     -25℃ ~ 60℃     -25℃ ~ 60℃
    -25℃ ~ 60℃


Dimension (unit:mm)

                                                                                                         30LED


                                                                                             60LED


                                                                                           144LED


IP Rate
