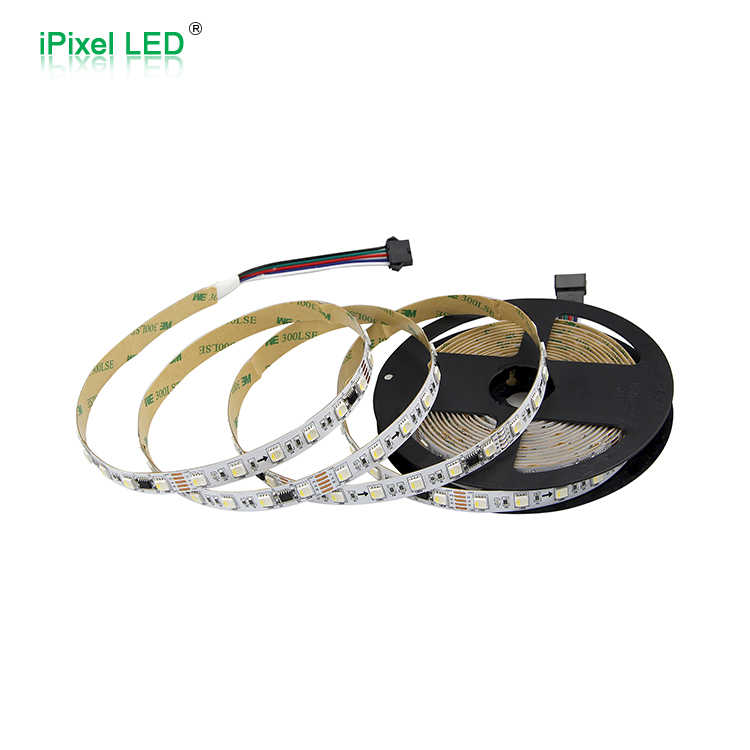

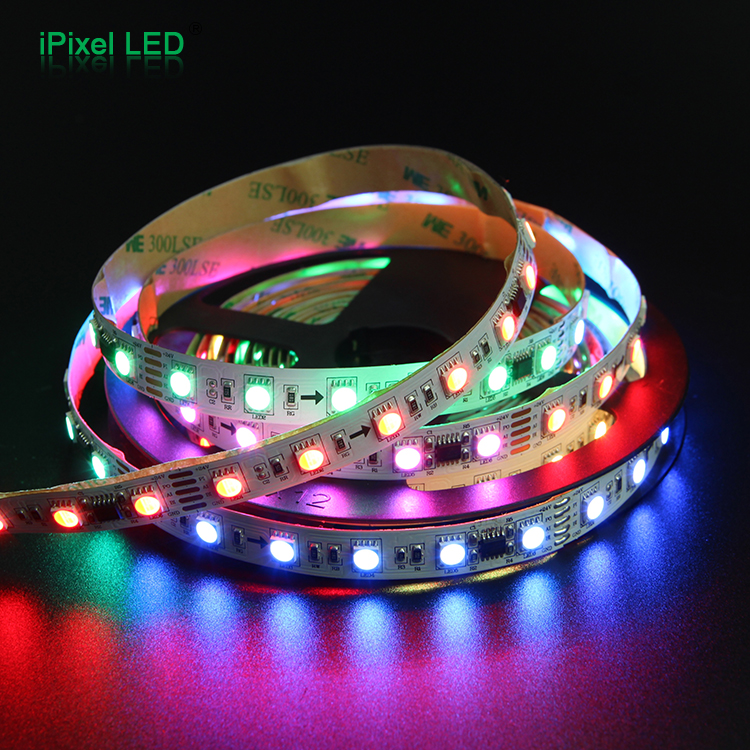

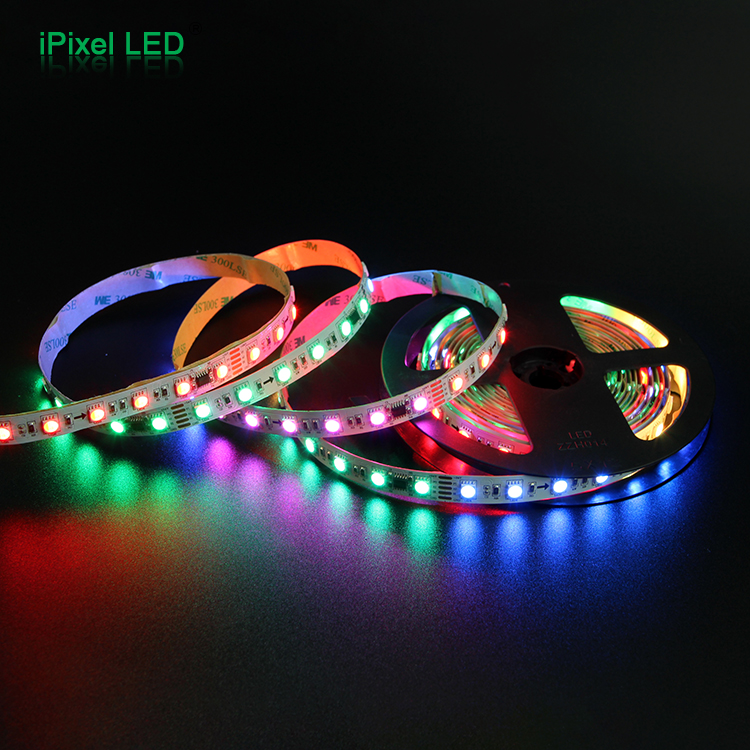

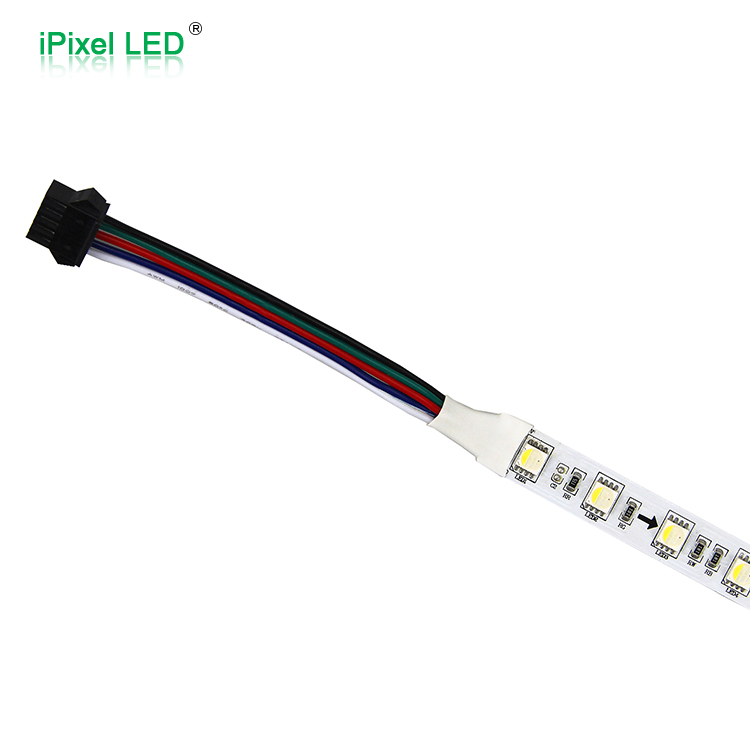

DMX512 5050 RGBW pixel LED Strip 60LEDs/m DC24V

Description

As our RGBW digital led strip is SPI signal , we consider it will have some clients project needs

DMX , so developed this TM512AC/DMX RGBW pixel flexible strip .
It comes 5 m in a reel , 6 LED per pixel per section with a cutting mark per 100mm
Waterproof made by silicone tube housing ,W14*H4mm
PCB board only has white color available DC24V constant voltage operation ,it request to

feed the power from each end of 5meters as the Voltage drop from the reel.
Total 10 Pixels and 40 DMX channel per meter



Share to

Facebook Twitter g+

Specification

Product Parameter

    PN
    S012060CC4DC0
    Voltage
    DC24V
    LED Type
    SMD5050RGBW
    LED Quantity     60LEDs/m
    Pixel/m
    10Pixels/m
    Color      RGBW
    Dimension
    5000*12mm
    Cutting unit
    100mm
    PCB Color     White
    Power
    19.2W/m
    Control
    DMX512
    O.T     -25℃ ~ 60℃



Dimension (unit:mm)

DMX 5050 RGBW pixel LED Strip 60LEDs/m 24V

IP Rate


Set DMX Address Video:
