Description

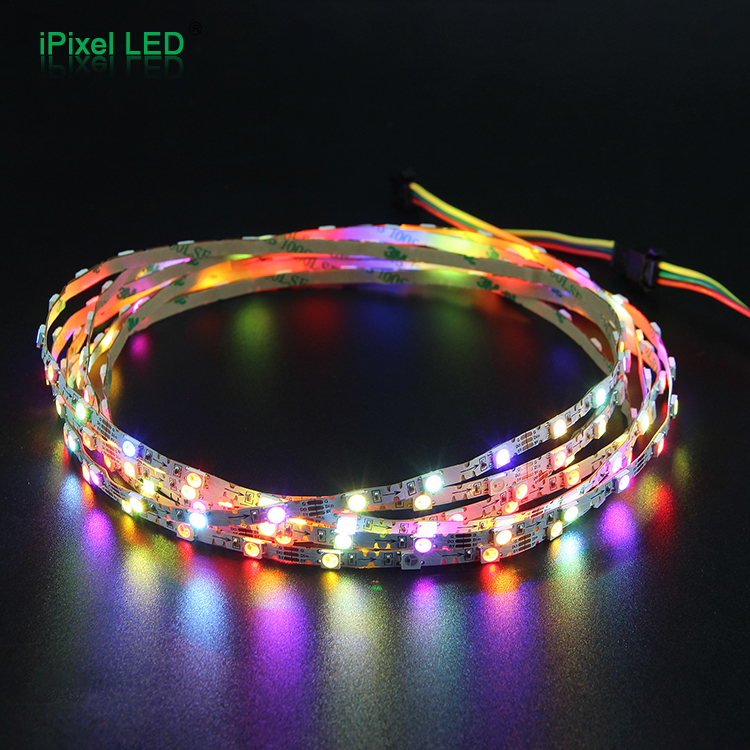

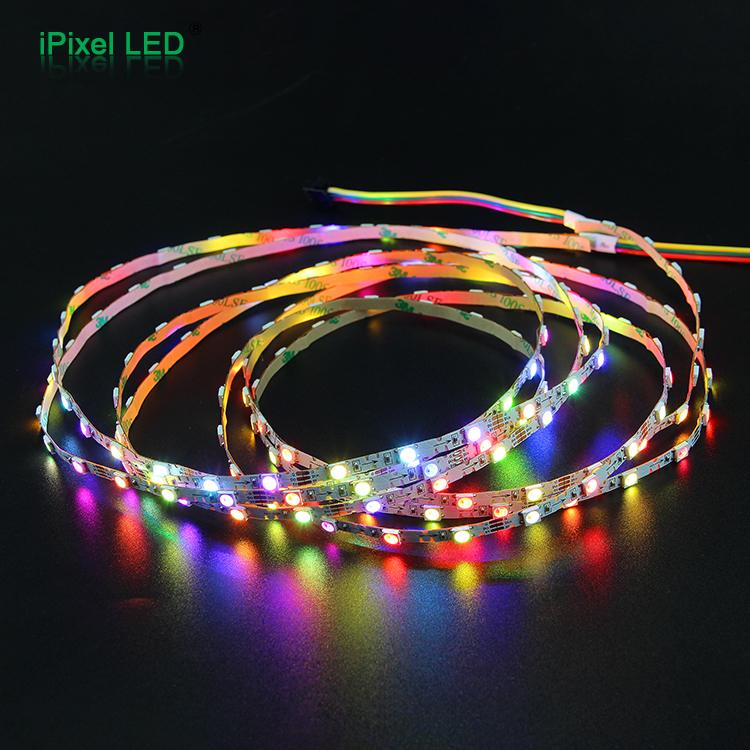

S shape(zigzag) addressable flex led strip
SMD5050 RGB 48LEDs/m, 5m in a reel, and 3LEDs per section cut-able every 3 leds
The IC is SK6812, with addressable individually control
The biggest advantage is the S shape, which can be bend at any Angle
Only available in IP20 non-waterproof version
|
PN |
S005048CA3SA1(S) |
|
Voltage |
DC5V |
|
Power |
10W/m |
|
LED Type |
SMD5050 RGB |
| LED Quantity |
48LEDs/m |
|
Cutting length |
62.5mm/3LED |
|
Dimension |
5000*5mm |
|
Protocol |
SPI - SK6812 |
| Pixel/M | 48 |
|
Materiral |
FPC |
|
Luminance/m |
R:60Lm G:150Lm B:35Lm |
| O.T | -25℃ ~ 60℃ |
Dimension (unit:mm)
IP Rate
