DC24V Addressable LED Bar 60Pixels

Application:

1. Night Club
2. KTV singing club
3. Dance floor
4. TV Show Back gound
5. Stage,Disco Club

6. Outdoor building,fridge

Email: [email protected]


Share to

Facebook Twitter g+

Specification

Product Parameter

    PN
    B050060CC3SA1
    Voltage
    DC24V
    LED Type
    SK 6812 RGB
    LED Quantity     60 leds/pcs
    Size
    1000*50*40 MM
    Beam Angle
    140°
    Emitting Color     IC RGB
    Power
    14 W
    Channel
    60 pixels
    O.T     -30℃ ~ 50℃

Description

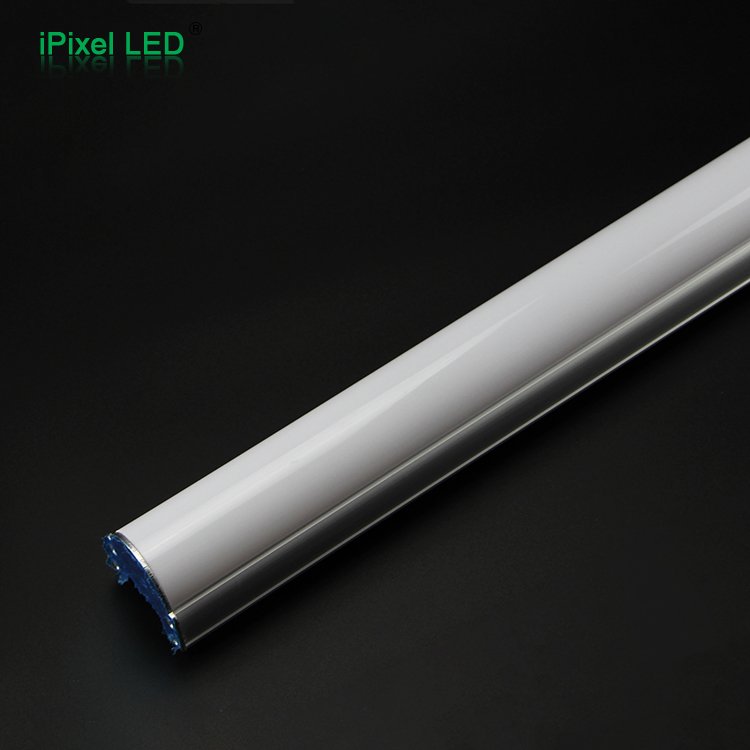

this tube looks like same as our DMX tube ,same as it's made by aluminum extrusion plus milky white cover

but the board designed by 60pcs SK6812 RGB LED and 24V DC operation,this makes the installation much

easier and no need put lots of power cable
Each tube included 2pcs Aluminum clips (without screw) it's cannot adjust the angle but it's move-able horizontal
Each tube attached a pair of wateproof 3Pin connector output from bottom side ,this could achive No-slot joint

when two pcs tube link in series
Although it's DC24V working , the addressable linear still requested to feed power every 5 meters



Dimension (unit:mm)

DC24V Addressable LED Bar

Accessory

DC24V Addressable LED Bar
