DMX LED Bar-16 Pixel

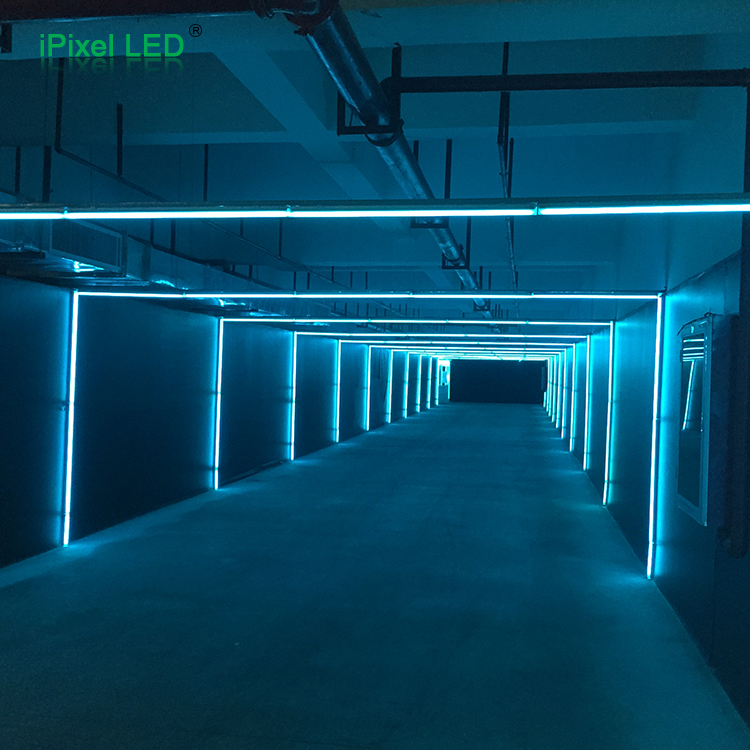

Application:

1. Night Club
2. KTV singing club
3. Dance floor
4. TV Show Back gound
5. Stage,Disco Club

6. Outdoor building,fridge

Email: [email protected]


Share to

Facebook Twitter g+

Specification

Product Parameter

    PN
    B050048DB3DG    丨    B050060CC3SA1
    Voltage
    DC12V                   丨    DC24V
    LED Type
    3535 RGB              丨    5050 RGB
    LED Quantity     48 leds                   丨    60 leds
    Size
    1000*50*40 MM
    Beam Angle
    140°
    Protocol     DMX 512               丨    SPI - SK6812
    Power
    12W                      丨    14 W
    Channel
    16 pixels(48CH)    丨     60 pixels
    O.T     -30℃ ~ 45℃

Description

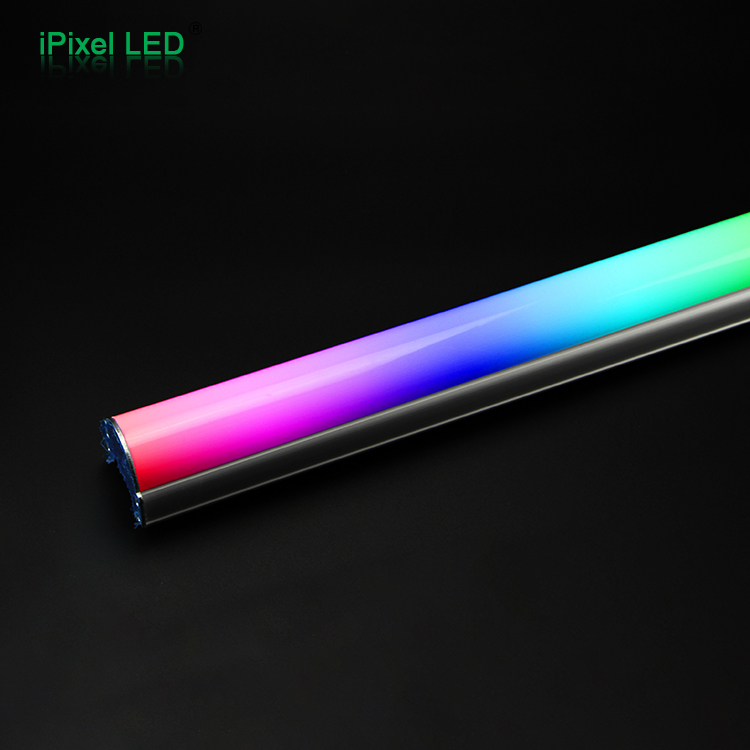

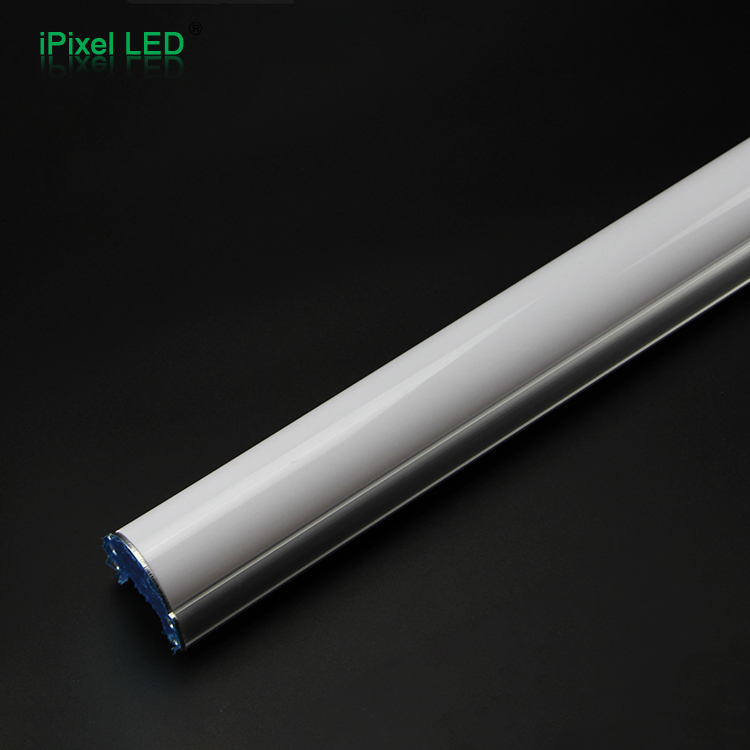

This LED Tube designed by Aluminum case with a Milky/Transparent
PC cover
DMX and SPI versions are available
The DMX led tube with is 16Pixels & 48CHs DMX address
The SPI SK6812 led tube with DC24V, addressable individually
60LEDs & 60Pixels per meter
Standard size is 1M, but customized lengths available
Each LED tube includes 2pcs aluminum brackets for installation


Dimension (unit:mm)

DMX LED Tube-16 Pixel

Accessory

DMX LED Tube-16 Pixel
