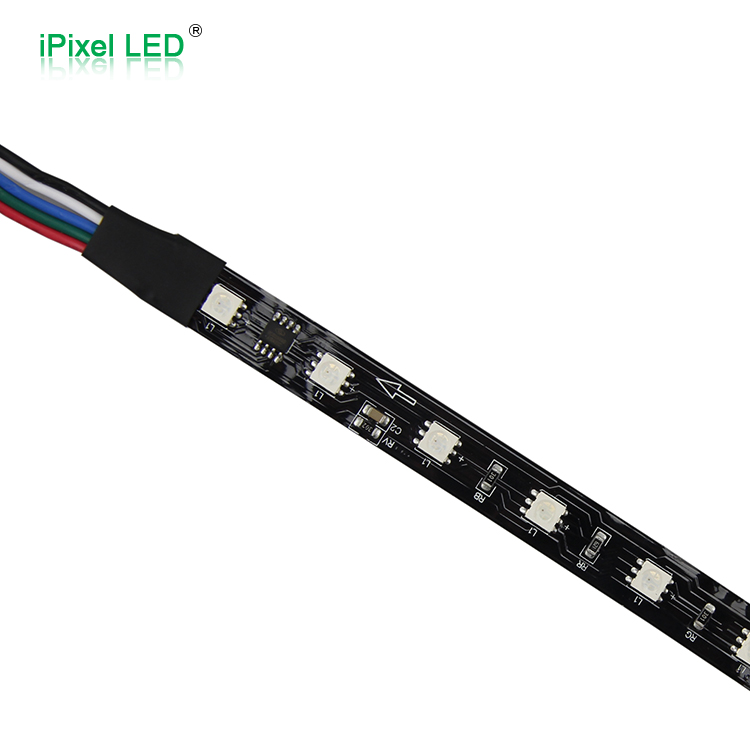

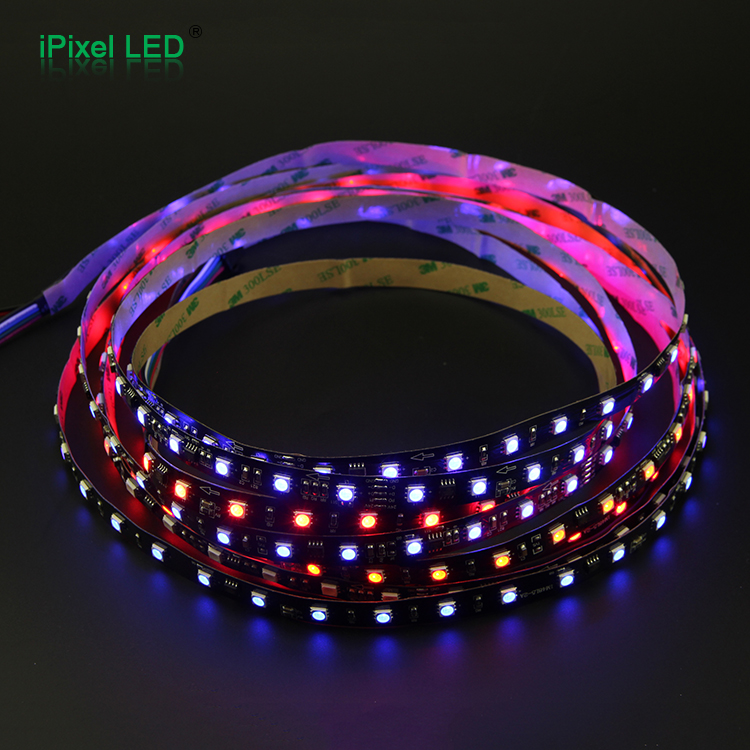

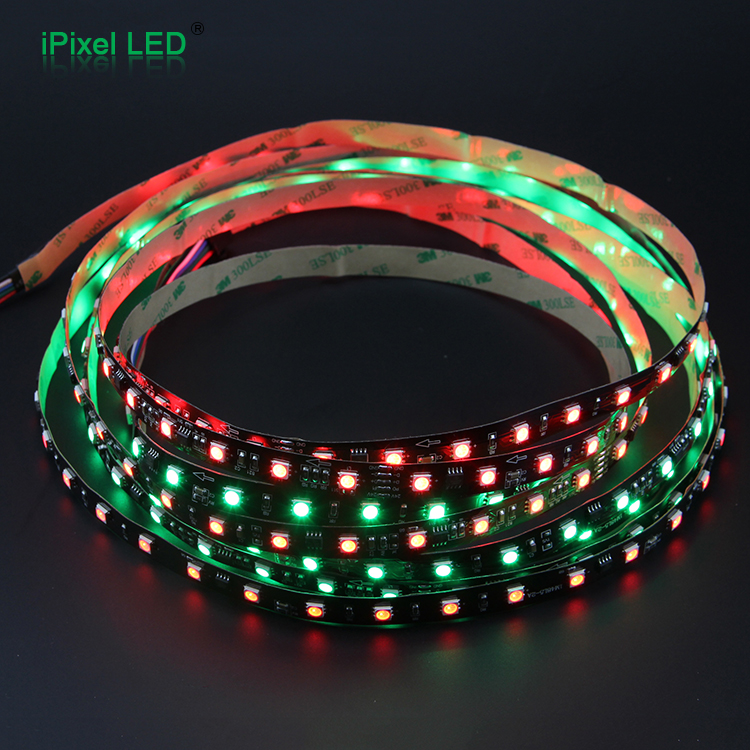

DMX512 RGB pixel LED Strip 48LEDs/M DC24V

Application:

1. Night Club
2. KTV singing club
3. Dance floor
4. TV Show Back gound
5. Stage,Disco Club
6. Outdoor building,fridge

Email: [email protected]



Share to

Facebook Twitter g+

Specification

Product Parameter

    PN
    S012048CC3DS
    Voltage
    DC24V
    LED Type
    SMD 5050 RGB
    LED Quantity     48leds/m
    Dimension
    5000*12MM
    Protocol
    DMX 512
    Power
    12 W/M
    Channel
    24Ch/m
    O.T     -30℃ ~ 45℃

Description

DMX led strip has 48pcs RGB LEDs & 24pcs DMX Address per meter
1+1 Ounce thick copper FPC, 5m per reel, 3M tape is included
Black color PCB board, it can be cut but the unit section is 500 mm
5Pin bare wire on each side, DC24V constant voltage operation
The DMX address set manually by a separate coder(DMX address writer)
Silicon coating, silicon tube housing waterproof


Dimension (unit:mm)

DMX512 RGB pixel LED Strip 24V

IP Rate

DMX512 RGB pixel LED Strip 24V

Set DMX address Video:
