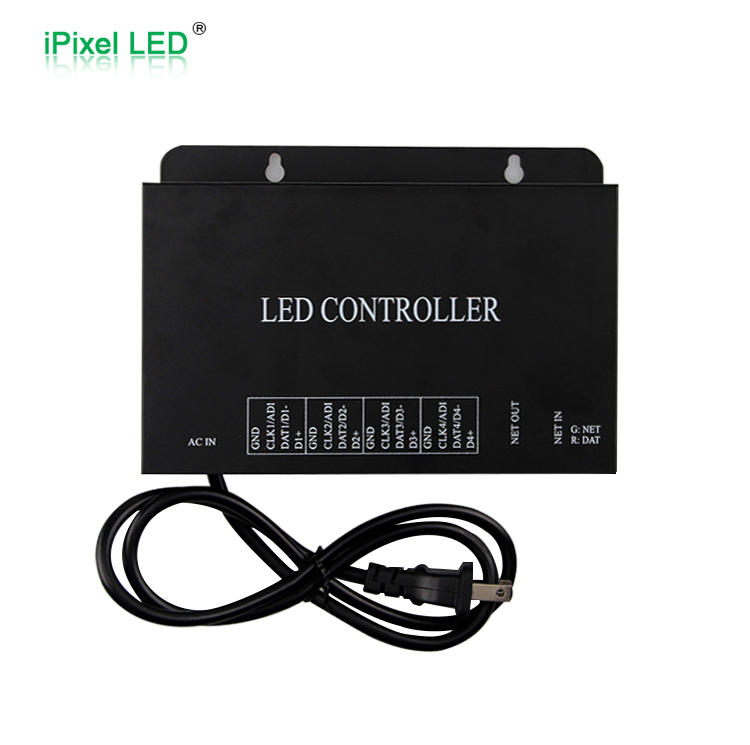

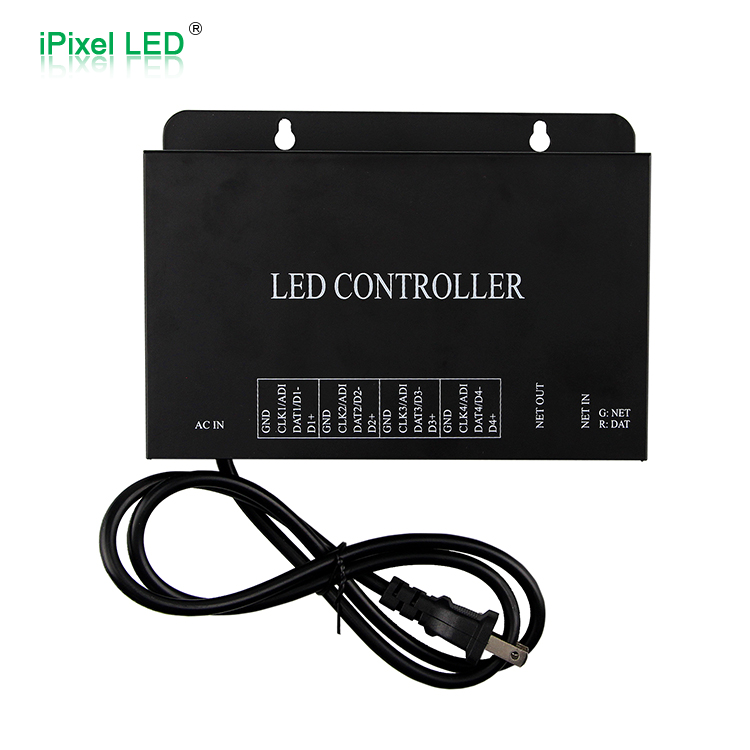

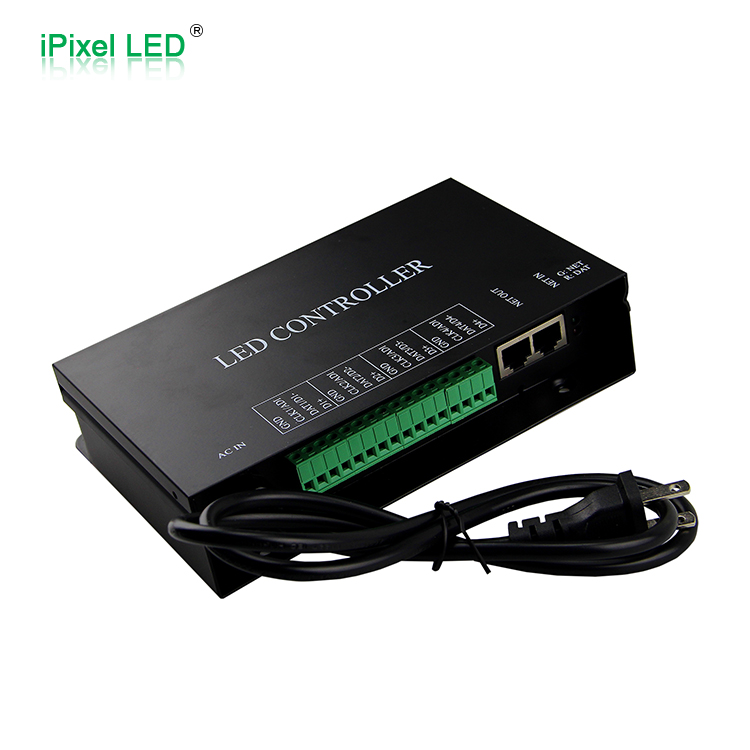

LED Slave Controller-H802RA

Download Software

 LEDStudio_V4_87


H802RA instructions


H802RA to PC



Share to

Facebook Twitter g+

Specification

Specifications:

Input Voltage           AC220V or 110V
Power Dissipation           1.3W
Control Pixels Number           4096
Weight           1KG
Dimension           L163 x W155 x H54 mm
Working Temperature           -40℃~85℃
Carton Size           L205 x W168 x H69mm
PCB Size           L119 x W47 x H21 mm

1. Introduction:
H802RA is a four ports output controller that employs Ethernet protocol and supports Art-Net protocol. It supports multiple kinds of LED driver chips and can address for DMX512 driver chips. The input network interface can be connected to master controller or computer.
  Online software are "LED Studio" and "MADRIX".
2. Support Driver Chips:
DMX512, HDMX, LPD6803, LPD8806, LPD1882, LPD1889, LPD1883, LPD1886, TM1812, TM1809, TM1804, TM1803, TM512, TM1926, TM1913, TM1914, TM1814, UCS6909, UCS6912, UCS1903, UCS1909, UCS1912, UCS512, UCS8904, APA102, APA104, P9813, WS2801, WS2803, WS2811, WS2812, WS2821, SM16716, SM16711, INK1003, LX1003, MY9221, MBI6021, MBI6024, LD1510, LD1512, LD1530, LD1532,etc.
3. Performance:
(1). Four ports, control maximum 4096 pixels.
(2). Support Art-Net protocol, so H802RA can work with MADRIX.
(3). Address for the TM and UCS DMX512 driver chips, such as TM512, UCS512.
(4). Configured as repeater or amplifier by LED Studio.
(5). Work with master controller or computer.

(6). Distance between two controllers is up to 100 meters.

4.Connection Diagram:
