635mm single color led rigid bar

Application:

1. Night Club
2. KTV singing club
3. Dance floor
4. TV Show Back gound
5. Stage,Disco Club
6. Outdoor building,fridge


Share to

Facebook Twitter g+

Specification

Product Parameter

    PN
    B004039BB1LZ
    Voltage
    DC12V
    LED Type
    SMD 2835
    LED Quantity     39 leds/pcs
    Color
    White
    Dimension
    635*4 MM
    CCT
    11000-13000K
    Luminosity     196 LM/PCS
    Power
    3 W/M
    CRI
    85 RA
    O.T     -30℃ ~ 45℃

Description

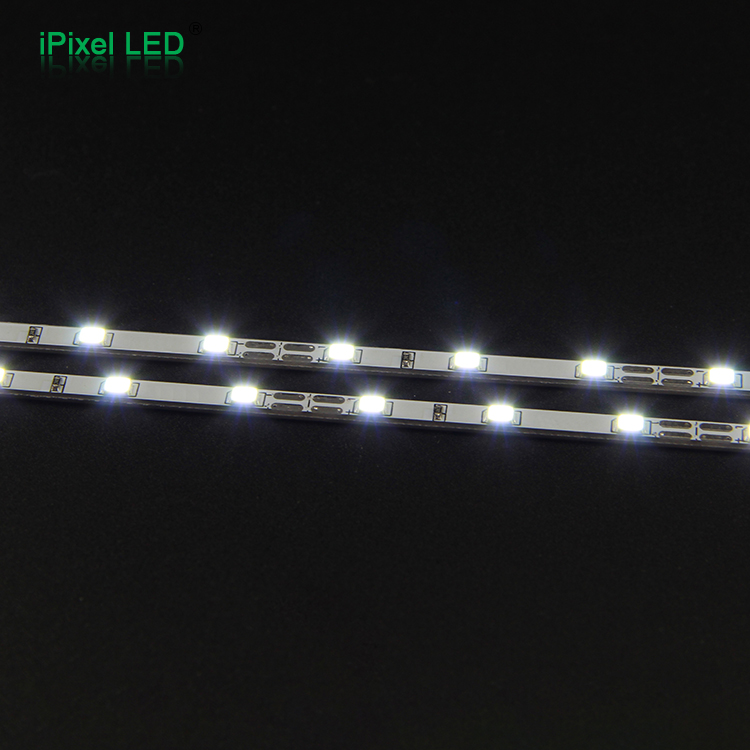

This led rigid bar ultra bright. There are 39 cool white LEDs per unit (635mm).
You can control the entire led rigid bar at once with any microcontroller and a power transistor.
The way they are wired, you will need a 12VDC power supply and connect directly.

You can cut this stuff pretty easily with wire cutters, there are cut-lines every 5cm (3 LEDs each).
You can do it yourself or ask us to put a 3M adhesive strip on the back which should stick to

most smooth surfaces.

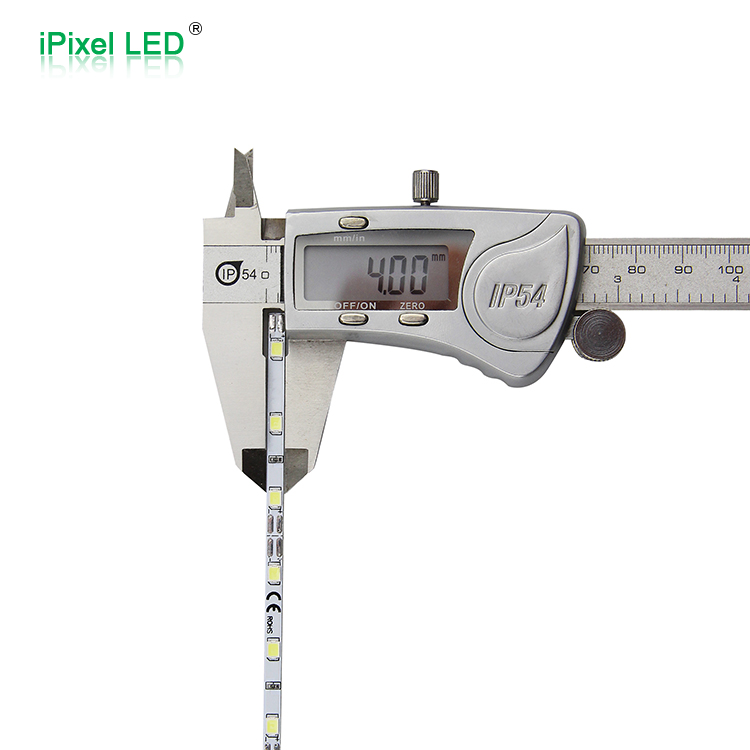

Dimension (unit:mm)
