1W High Power LED Module

Application:

1.DIY electronic production.

2.Advertising ,Display.
3.Dance floor decoration.
4.DJ background,DJ Table ,Stage floor etc.

Email: [email protected]


Share to

Facebook Twitter g+

Specification

Product Parameter

    PN
    M020001MA1LZ
    Beam Angle
    140°
    LED Type
    Imitation lumen lamp beads
    Operating Voltage
    R: 2-2.8V G: 3.2-3.8V B: 3.2-3.8V Y: 2-2.8V W: 3.2-3.8V WW:3.2-3.8V
    Luminance/pcs
    R:75-105lm G:75-105lm B: 30-60lm Y:75-105lm W:160-240lm WW:160-200lm
    Color temperature(K)
    R:620-630 G:520-530 B:460-470 Y:585-595 W: 6000-7000 WW:3000-3300
    CRI
    85 RA
    Power
    1 W/PCS
    IP
    IP 20
   Size (mm)
    φ20
    O.T     -40℃ ~ 50℃

Description

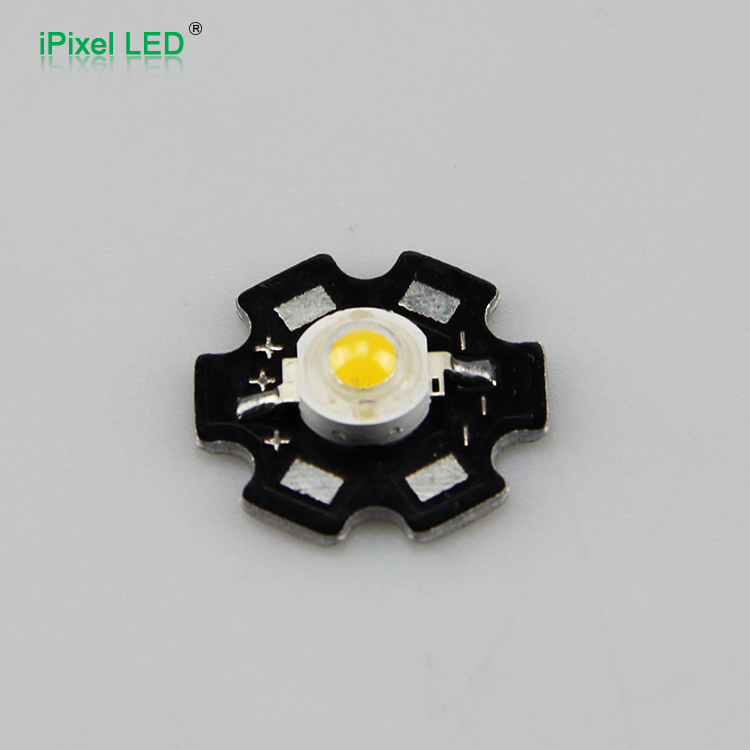

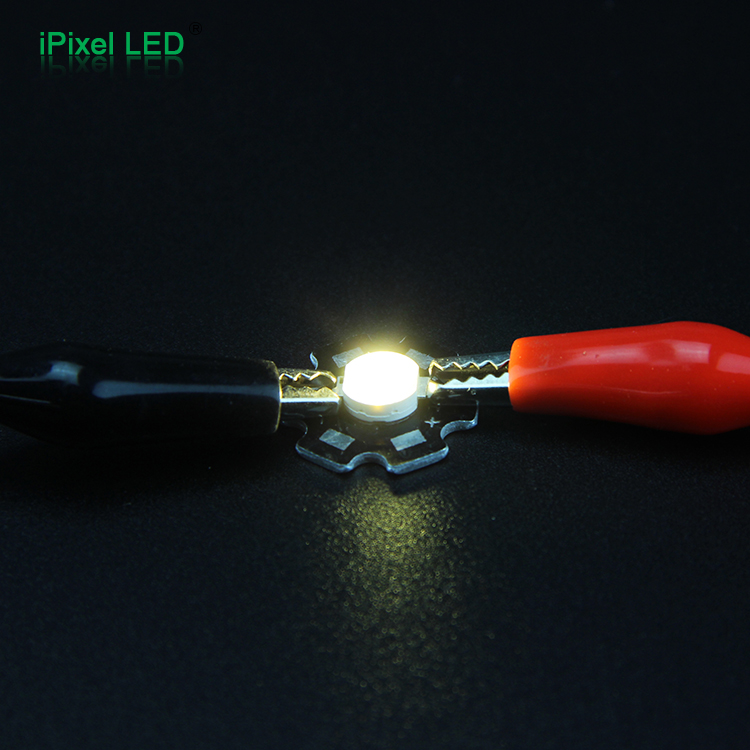

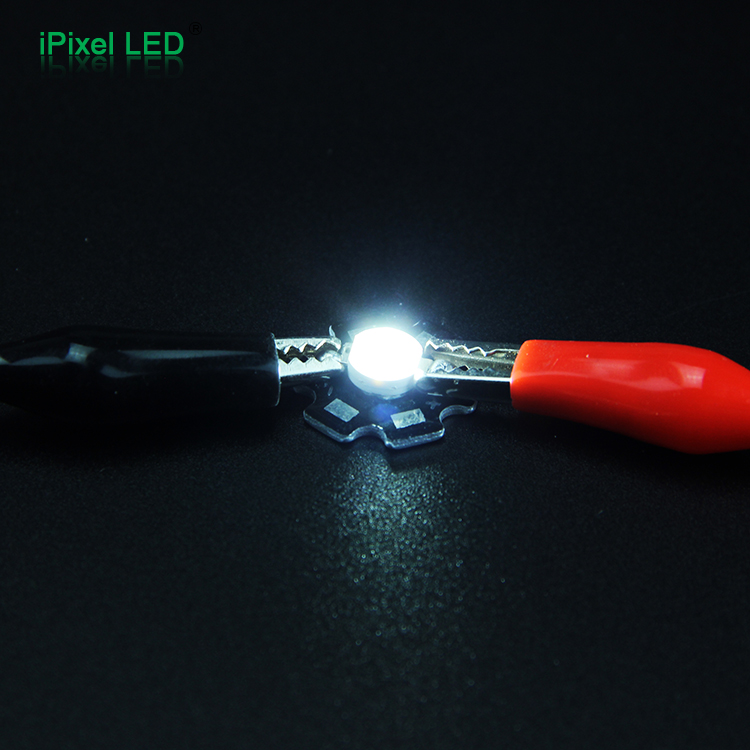

This is a super bright LED mounted on a Aluminum board backside without a 3M stick ,suggested to install

on any plate for heat disspation it has 5 different colors which also runing different working

Voltage from 2.0-3.8V (refer to datasheet) there are 2 of each positive and negative pad for soldering cable .
it's packed by An-ti static bag every 5 pcs


Dimension (unit:mm)
