Application:
1.DIY electronic production.
2.Advertising ,Display.
3.Dance floor decoration.
4.DJ background,DJ Table ,Stage floor etc.
|
PN |
M022001MA3PZ |
|
Voltage |
R: 2.2-2.6V G: 3.2-3.8V B: 3.2-3.8V |
|
LED Type |
Imitation lumen lamp beads |
|
Beam Angle |
140° |
|
Size（mm） |
φ22.5 |
|
PCB color |
Black |
|
Emitting Color |
RGB |
|
Power |
3 W/PCS |
|
IP |
IP 20 |
|
Lumen Per Module |
R: 64 lm G: 68 lm B: 10lm |
| O.T |
-40℃ ~ 50℃ |
Description

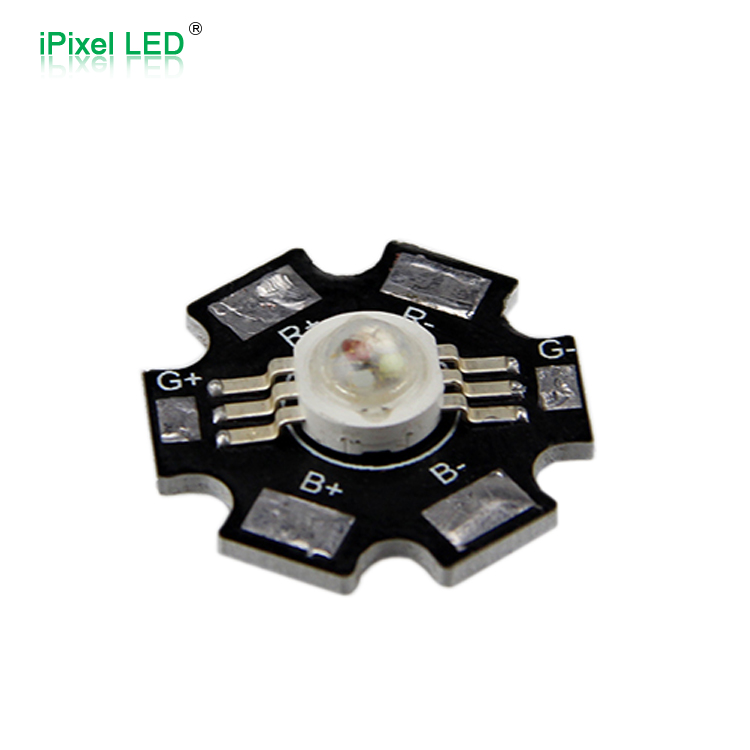

This is a super bright RGB LED mounted on a Aluminum board backside without a 3M stick ,suggested to
install on any plate? for heat disspation the Red,Green,Blue colors runing different working
Voltage from 2.2-3.8V (refer to datasheet) there is a positive and negative pad for each color
where could soldering cable . it's packed by An-ti static bag every 5 pcs
Dimension (unit:mm)
