Home > LED Flex > RGBW >   SMD 5050 RGBW LED strip 60LEDs/M DC12V/24V

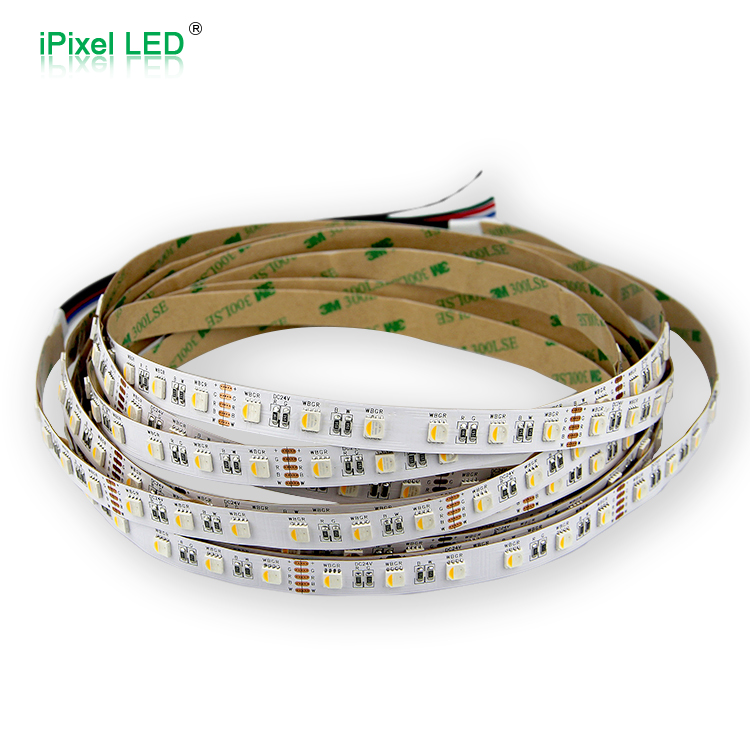

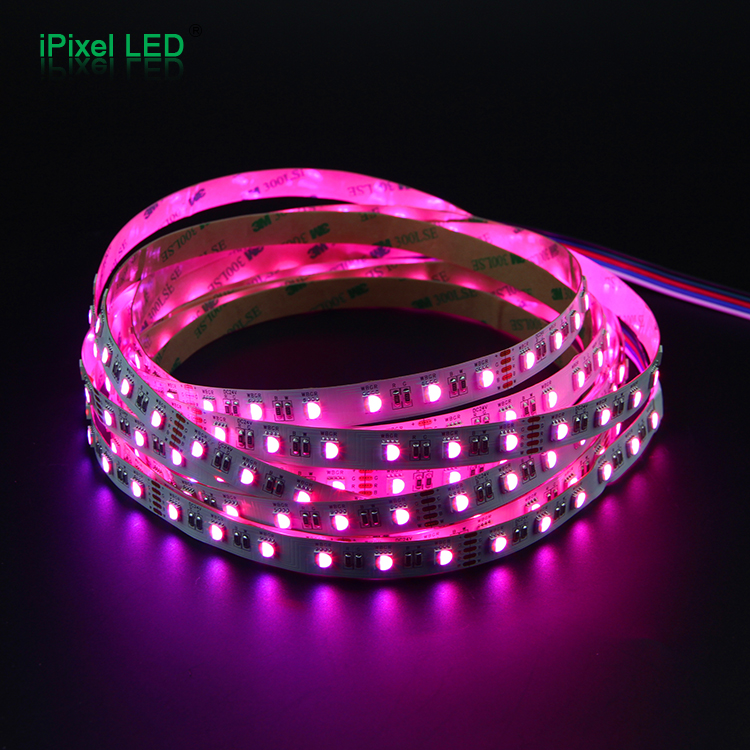

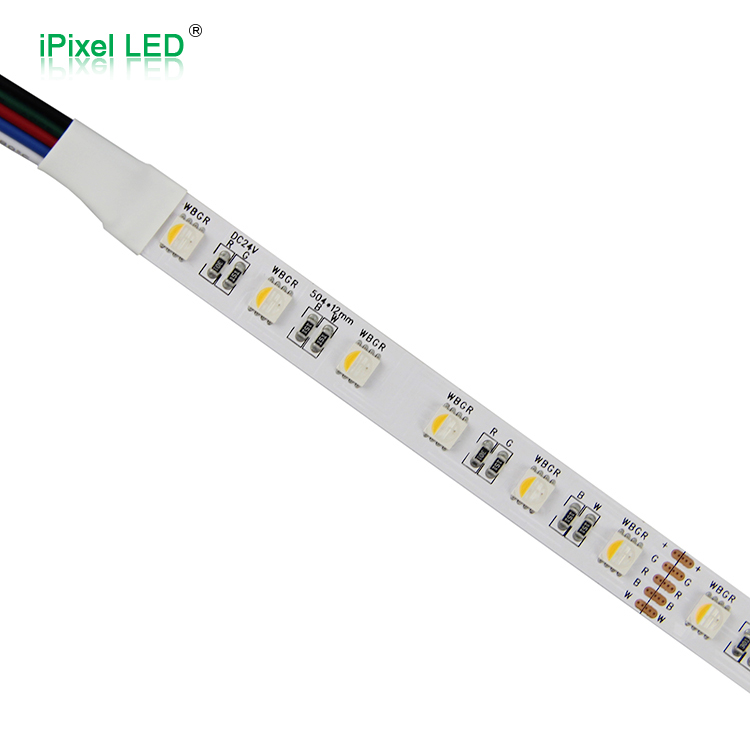

SMD 5050 RGBW LED strip 60LEDs/M DC12V/24V

Description

This is a PWM control RGBW color LED strip without Pixel
60pcs SMD 5050 4 in 1 RGBW LEDs per meter, 5meters/reel, PCBwide is 12mm
The cutting unit length is 50mm ( 12V ), or 100mm (24V)
The PCB is made by 3 Ounce copper
All soldering Pads are very large, allowing you to easily cut and reconnect
DC12/24V constant voltage operation
Both ends have 5pin bare wires for powering, Common anode, black cable is DC+

3M tape attached on backside of FPC
3 different waterproof types IP64, IP65, IP67



Share to

Facebook Twitter g+

Specification

Product Parameter

   PN     S012060CB4PZ
 S012060CC4PZ
   Voltage     DC12V
 DC24V
   LED Type     SMD 5050 4 in1 RGBW
 SMD 5050 4 in1 RGBW
    LED Quantity     60LEDs/m
 60LEDs/m
    CCT     RGB+W3000K//4000K/6500K  RGB+W3000K//4000K/6500K
    Dimension     5000*12mm
 5000*12mm
    Lumens/m     R:106G:261B:59W:378lm
 R:106G:261B:59W:378lm
    PCB Color     White/Black  White/Black
    Power     19.2W/m
 19.2W/m
    Protocol     PWM  PWM
    O.T     -25℃ ~ 60℃  -25℃ ~ 60℃


Dimension (unit:mm)

IP Rate
