Home > LED Flex > RGB >   SMD 4040 RGB LED Strip 120LEDs/M DC12V/24V

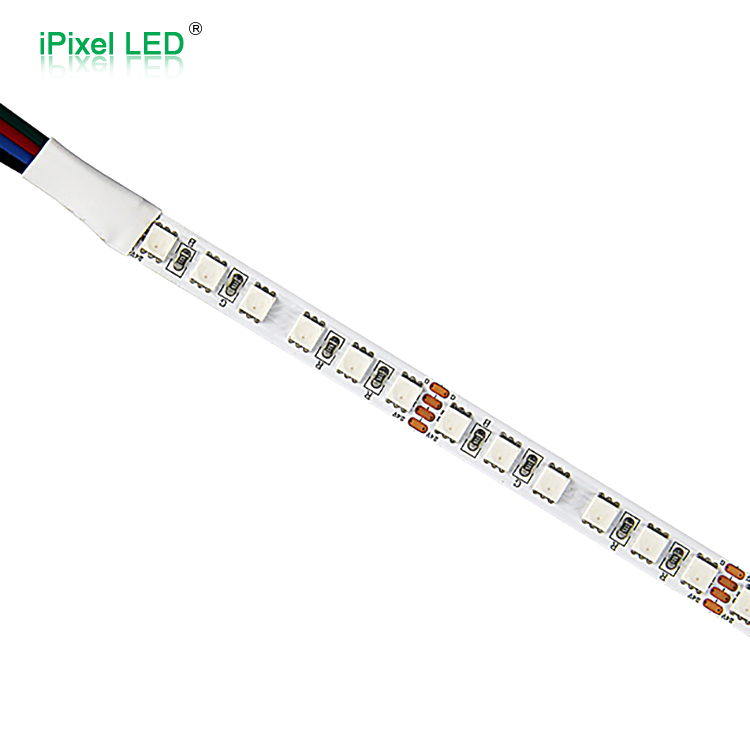

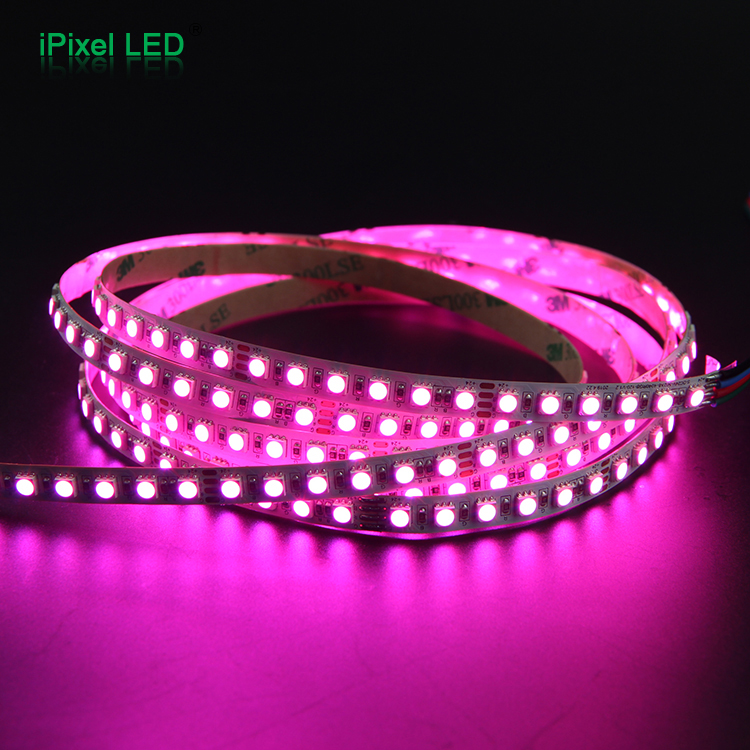

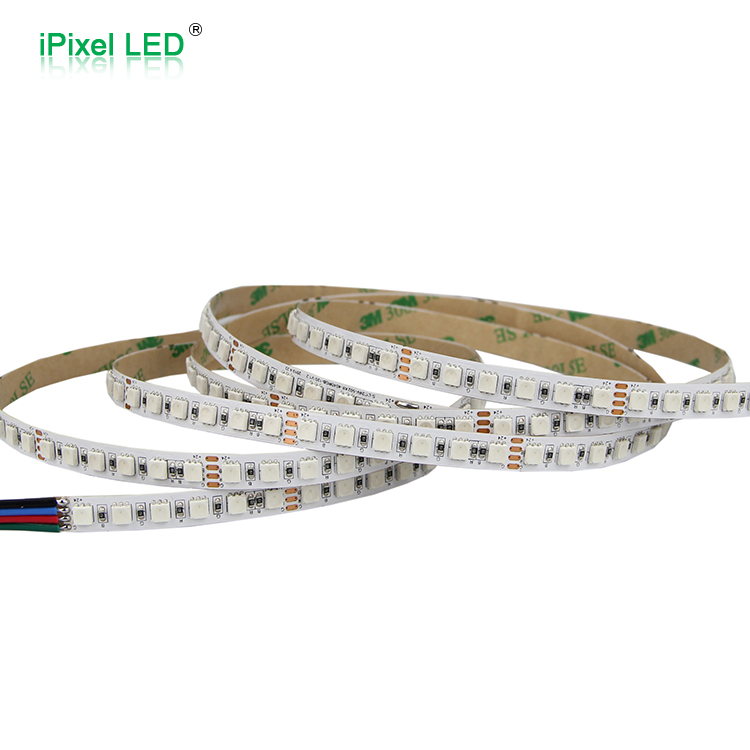

SMD 4040 RGB LED Strip 120LEDs/M DC12V/24V

Description

This is a PWM control RGB color LED strip without Pixel
120pcs SMD RGB LED per meter, 5meters/reel, 8mm PCB width
The cutting unit length is 25mm (12V), 50mm (24V)
The PCB is made by 2 Ounce thick copper
All soldering Pads are very large, allowing you to easily cut andreconnect

DC12/24V constant voltage operation
Both ends have 4pin bare wires for powering
3M tape attached on backside of FPC
3 different waterproof types IP64, IP65, IP67



Share to

Facebook Twitter g+

Specification

Product Parameter

    PN
    S008120TB3PZ
 S008120TC3PZ
    Voltage
    DC12V
 DC24V
    LED Type
    4040 RGB
 4040 RGB
    LED Quantity     120LEDs/m
 120LEDs/m
    CCT
    RGB  RGB
    Dimension
    5000*8mm
 5000*8mm
    Cutting unit
    25mm
 50mm
    PCB Color     White  White
    Power
    14.4W/m
 27W/m
    Protocol
    PWM  PWM
    O.T     -25 - 60℃  -25 - 60℃



Dimension (unit:mm)

IP Rate
