Description

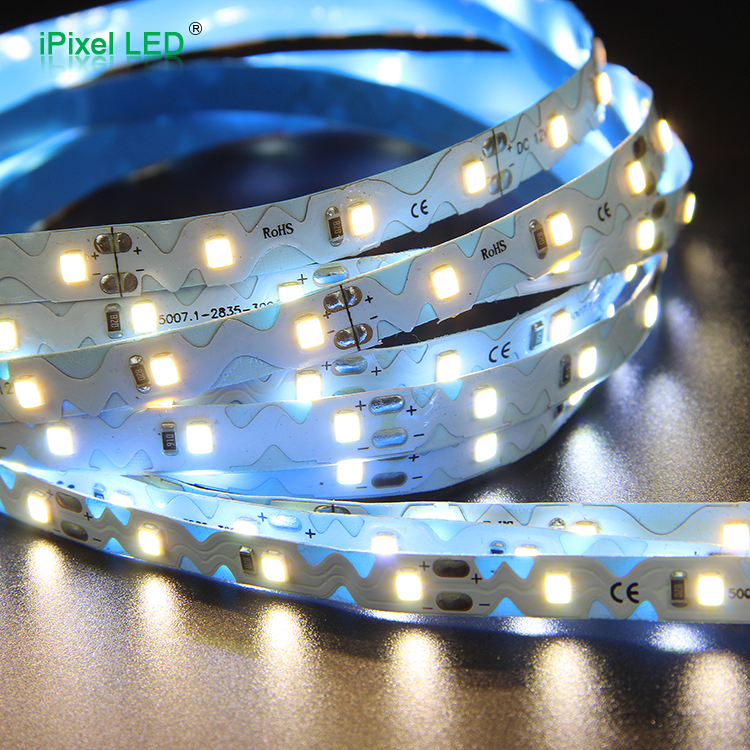

This flexible LED strip solders 60pcs SMD 2835 LEDs per meter
FPC in white color with 8mm Width, and 1+1 Ounce copper
Both ends have 2pin bare wires for powering
Heat resistant tape attached on backside of FP
COnly available in IP20 non-waterproof version CCT 2800-3200K 4000-4500K 9000-10000K are available

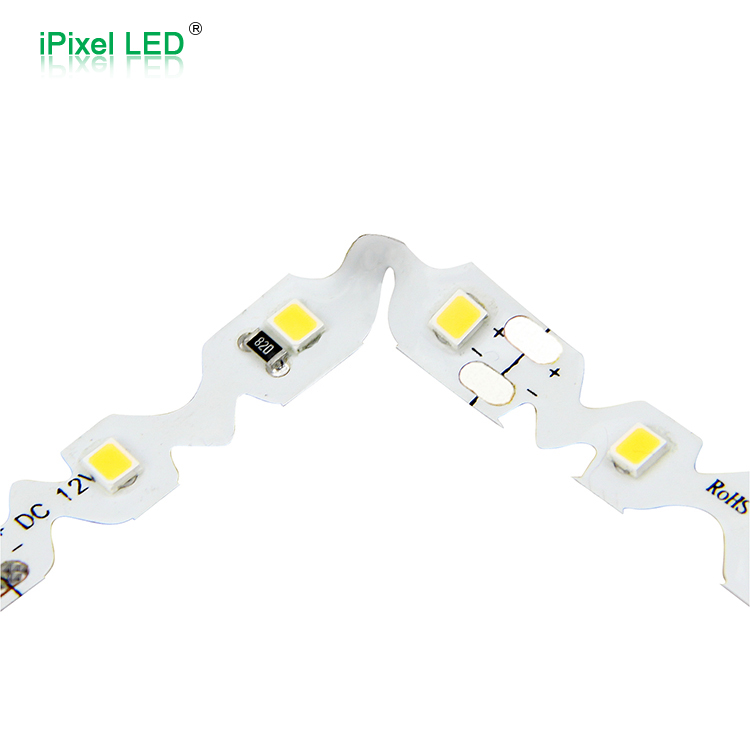

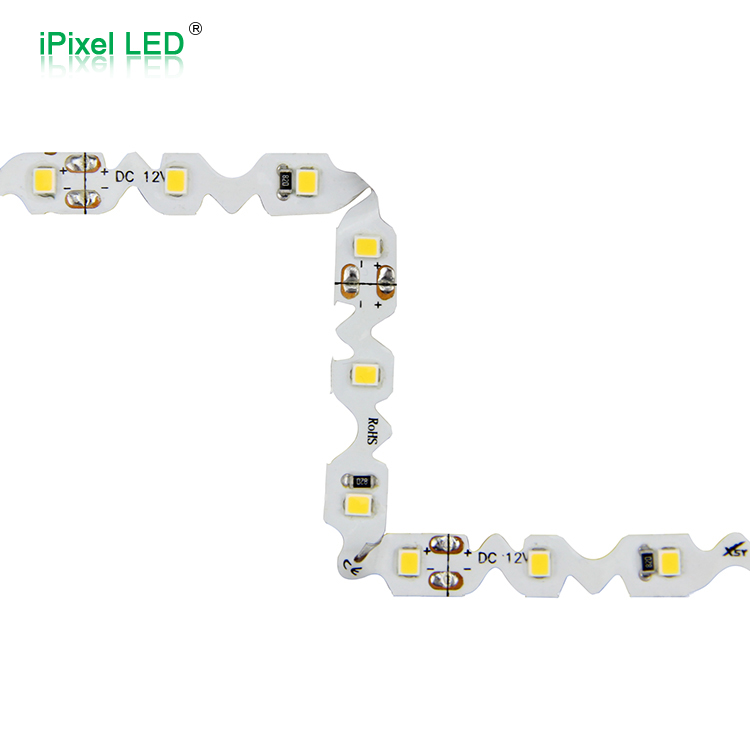

The biggest advantage is the S shape which can be bend at any Angle
|
PN |
S008060BB1LZ(S) |
S008060BC1LZ(S) |
|
Voltage |
DC12V |
DC24V |
|
LED Type |
SMD 2835 |
SMD 2835 |
| LED Quantity |
60LEDs/m |
60LEDs/m |
|
Cutting length |
50mm/3LED |
100mm/6LED |
|
CCT |
3000K/4000K/6500K |
3000K/4000K/6500K |
|
Lumens |
490lm/m |
496lm/m |
|
Dimension |
5000*8mm |
5000*8mm |
|
Power |
4.8W/m |
4.8W/m |
|
CRI |
90RA | 90RA |
| O.T | -25℃ ~ 60℃ |
-25℃ ~ 60℃ |
Dimension (unit:mm)
IP Rate
