Home > LED Flex > One Color > SMD 5050 10mm static color LED strip 30LEDs/M DC12V/24V

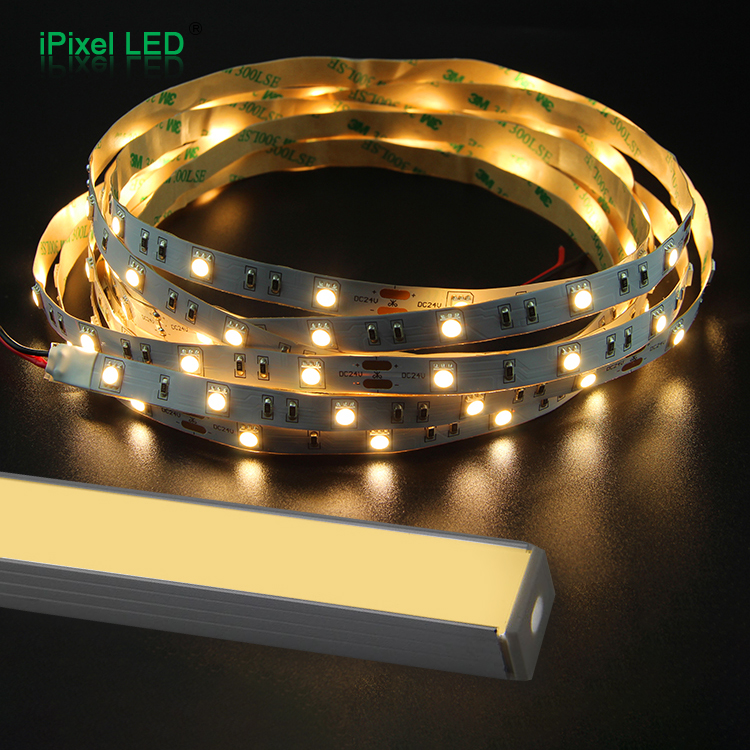

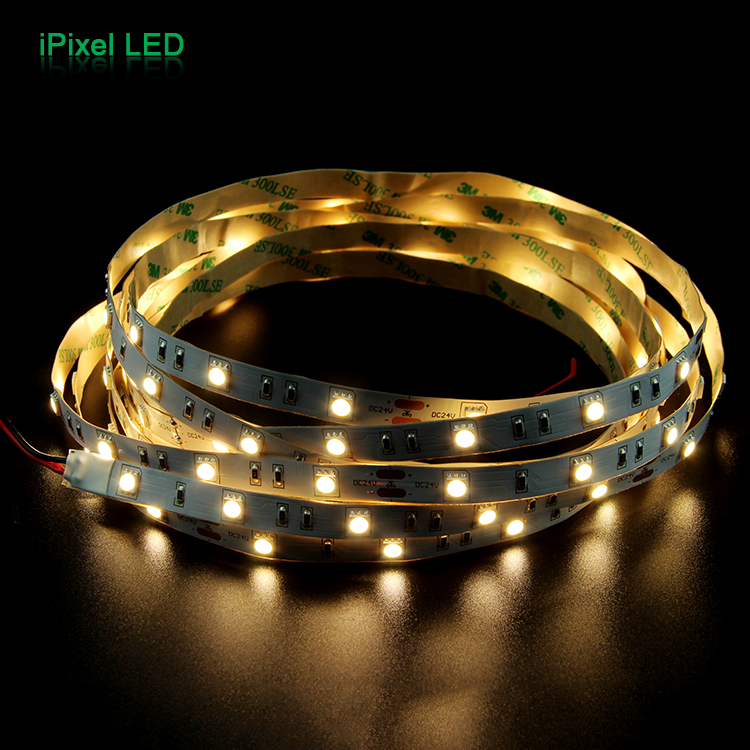

SMD 5050 10mm static color LED strip 30LEDs/M DC12V/24V

Description

- This flexible LED strip with 30pcs SMD 5050 LEDs per meter
- FPC in white color with 10mm Width
- All soldering Pads are very large, allow you to cut and reconnect very easy
- 2pin bare wires at both ends for powering
- 3M tape attached on backside of FPC, 5 meters in a reel
- A variety of colors are available

Share to

Specification

Product Parameter

PN	S010030CB1LZ	S010030CC1LZ
Voltage	DC12V	DC24V
LED Type	SMD 5050	SMD 5050
LED Quantity	30LEDs/m	30LEDs/m
CCT	3000K/4000K/6500K	3000K/4000K/6500K
Dimension	5000*10mm	5000*10mm
Lumens/m	682lm	682lm
SDCM	＜5	＜5
PCB Color	White	White
Power	7.2W/m	7.2W/m
CRI	80RA	80RA
O.T	-25℃ ~ 60℃	-25℃ ~ 60℃
